Product features:
1. Long cycle life and high reliability.
2. Small size, light weight, high energy density, green environmental protection.
3. Wide working temperature range, good high and low temperature performance.
4. High efficiency, energy saving, stable power supply and high power output.
5. Ultra low power consumption and long duration of power supply.
Application field:
Emergency lamp, solar street lamp, lawn lamp, outdoor lighting.
Detailed parameters:

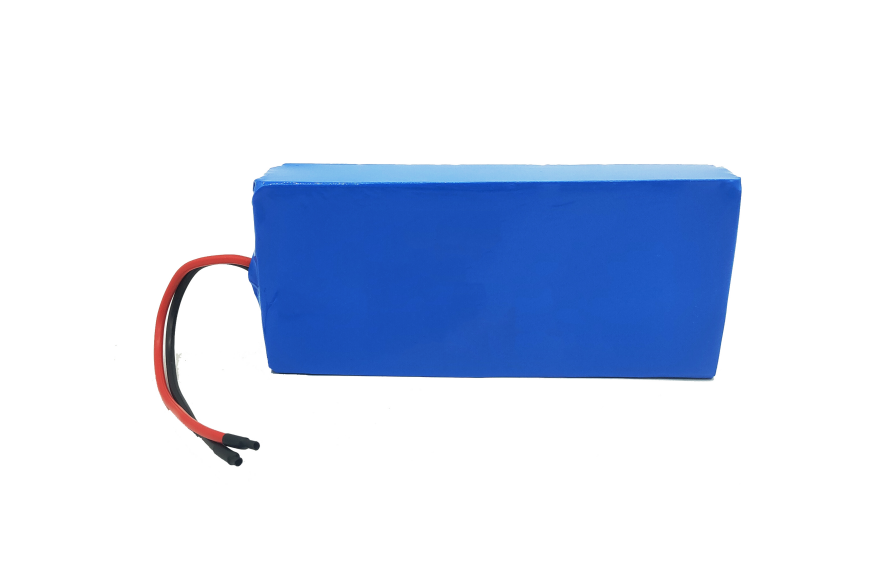

Product name | LiFePO4 Battery | Model | NPFL12-20 |
Nominal Capacity | 20Ah | Nominal Voltage | 12.8V |
Charge Mode (CC/CV) | Constant current and constant voltage charging | Charge Voltage | 14.4V |
Discharge Cut-off Voltage | 10V | Continues Current | 10A |
Max Pulse Current | 40A | working temperature | -20~60℃ |
Material of case | ABS | Terminal | / |
Weight | 2.3±0.1Kg | Dimension(L*W*H) | 200*85*75mm |
Product features | Intelligent protection, high power output, series parallel support, cycle life 3000 times | ||
Product use | Emergency lamp, solar street lamp, lawn lamp, outdoor lighting. | ||
NPFL12-20
