Product features:
1．Long cycle life and high reliability.
2．Small size, light weight, high energy density, green environmental protection.
3．It has communication function and can be connected with Bluetooth of mobile phone.
4．Wide working temperature range, good high and low temperature performance.
5．High efficiency, energy saving, stable power supply, high power output, visual design.
6．Modular design, convenient system maintenance.
Application field:
Special for AGV
Detailed parameters:

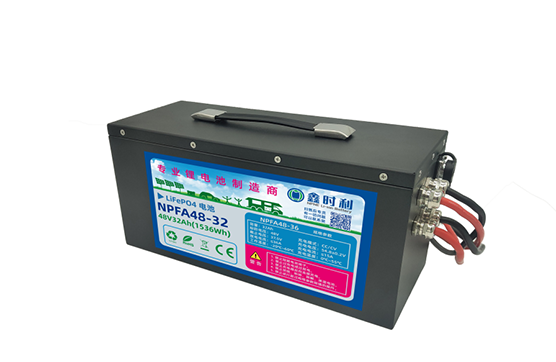

Product name | LiFePO4 Battery | Model | NPFA48-32 |
Nominal Capacity | 32Ah | Nominal Voltage | 48V |
Charge Mode (CC/CV) | Constant current and constant voltage charging | Charge Voltage | 54.8V |
Discharge Cut-off Voltage | 37.5V | Continues Current | 32A |
Max Pulse Current | 120A | working temperature | -20~60℃ |
Material of case | Metal | Terminal | Anderson plug |
Weight | 18.0±0.5Kg | Dimension(L*W*H) | 420*140*200mm |
Product configuration | RSpecial charger RBluetooth | ||
Product features | Intelligent protection, high power output, series parallel support, cycle life 3000 times | ||
Product use | Special for AGV | ||
NPFA48-32
