AGV Batteries

AGV Batteries

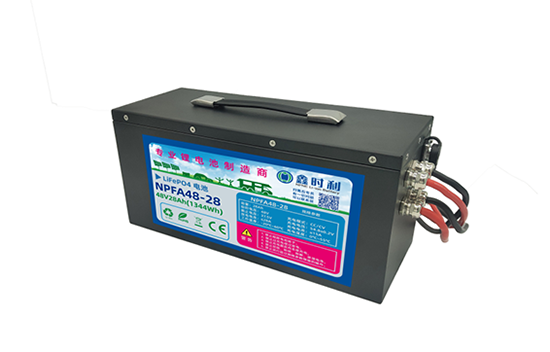

NPFA48-28

Product introduction:

Product features:

1.Long cycle life and high reliability.

2.Small size, light weight, high energy density, green environmental protection.

3.It has communication function and can be connected with Bluetooth of mobile phone.

4.Wide working temperature range, good high and low temperature performance.

5.High efficiency, energy saving, stable power supply, high power output, visual design.

6.Modular design, convenient system maintenance.

Application field:

Special for AGV

Detailed parameters:

Product name

LiFePO4 Battery

Model

NPFA48-28

Nominal Capacity

28Ah

Nominal Voltage

48V

Charge Mode (CC/CV)

Constant current and constant voltage charging

Charge Voltage

54.8V

Discharge Cut-off Voltage

37.5V

Continues Current

28A

Max Pulse Current

90A

working temperature

-20~60℃

Material of case

Metal

Terminal

Anderson plug

Weight

16.0±0.5Kg

Dimension(L*W*H)

350*140*160mm

Product configuration

RSpecial charger   RBluetooth

Product features

Intelligent protection, high power output, series parallel support, cycle life 3000 times

Product use

Special for AGV



Data download:

downloadNPFA48-28
