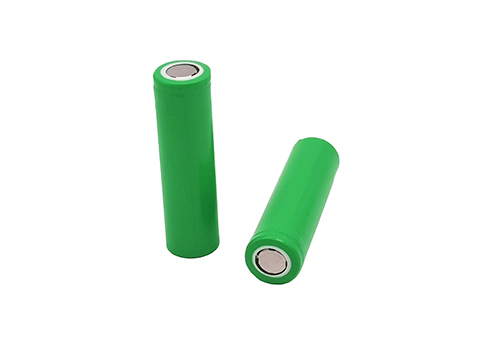

18650-2600

Advantage:
Safety, high capacity, long service life and wide temperature range.
Use:
Electric bicycle, golf trollery, electric sightseeing car, electric forklift, electric balance car,electric scooter.
Project
Parameter
Nominal capacity
2600mAh（0.5C）
Capacity range
≥2650mAh（0.5C）
Voltage
3.6V
Energy Density
185Wh/kg
AC internal resistance
≤25mΩ
Battery weight
48g (about)
Charging condition
0.5C constant current to 4.2V, constant voltage to 52mAh
Maximum charging current
2.6A
Discharge cutoff voltage
2.75V
Standard continuous discharge current
1.3A
Fast continuous discharge current
2.6A
Maximum sustained discharge current
7.8A (single battery)
Pulse discharge current
13A，5s
Cyclic performance
(1C charge 1C discharge cycle capacity retention rate ≥ 80%)
2000 times（100%DOD）
4000 times（80%DOD）
7000 times（50%DOD）
Operating temperature
Charging：0℃—55℃
Discharge：-20℃—60℃
Storage temperature
-20℃—55℃（<3 months）
Dimension
（Φ18.3±0.2）*（65.2±0.3）mm

18650-2600
