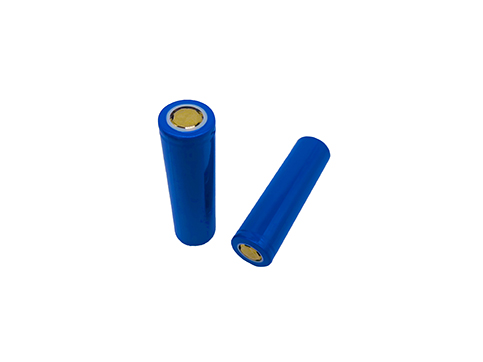

18650-1600-3.2

Advantage:
Safety, high capacity, long service life and wide temperature range.
Use:
Electric bicycle, golf trollery, electric sightseeing car, emergency lamp, miner's lamp.
Project
Parameter
Nominal capacity
1600mAh（0.5C）
Capacity range
≥1550mAh（0.5C）
Voltage
3.2V
Energy Density
130Wh/kg
AC internal resistance
≤40mΩ
Battery weight
39.5g (about)
Charging condition
0.5C constant current to 3.65V, constant voltage to 16mAh
Maximum charging current
1.6A
Discharge cutoff voltage
2.5V
Standard continuous discharge current
0.8A
Fast continuous discharge current
1.6A
Maximum sustained discharge current
4.8A (single battery)
Pulse discharge current
10A，5s
Cyclic performance
(1C charge 1C discharge cycle capacity retention rate ≥ 80%)
2000 times（100%DOD）
4000 times（80%DOD）
7000 times（50%DOD）
Operating temperature
Charging：0℃—55℃
Discharge：-20℃—60℃
Storage temperature
-20℃—55℃（<3 months）
Dimension
（Φ18.3±0.2）*（65.2±0.3）mm

18650-1600-3.2
